String Power Conversion System

EH-5160-HA-MR-US-34.5

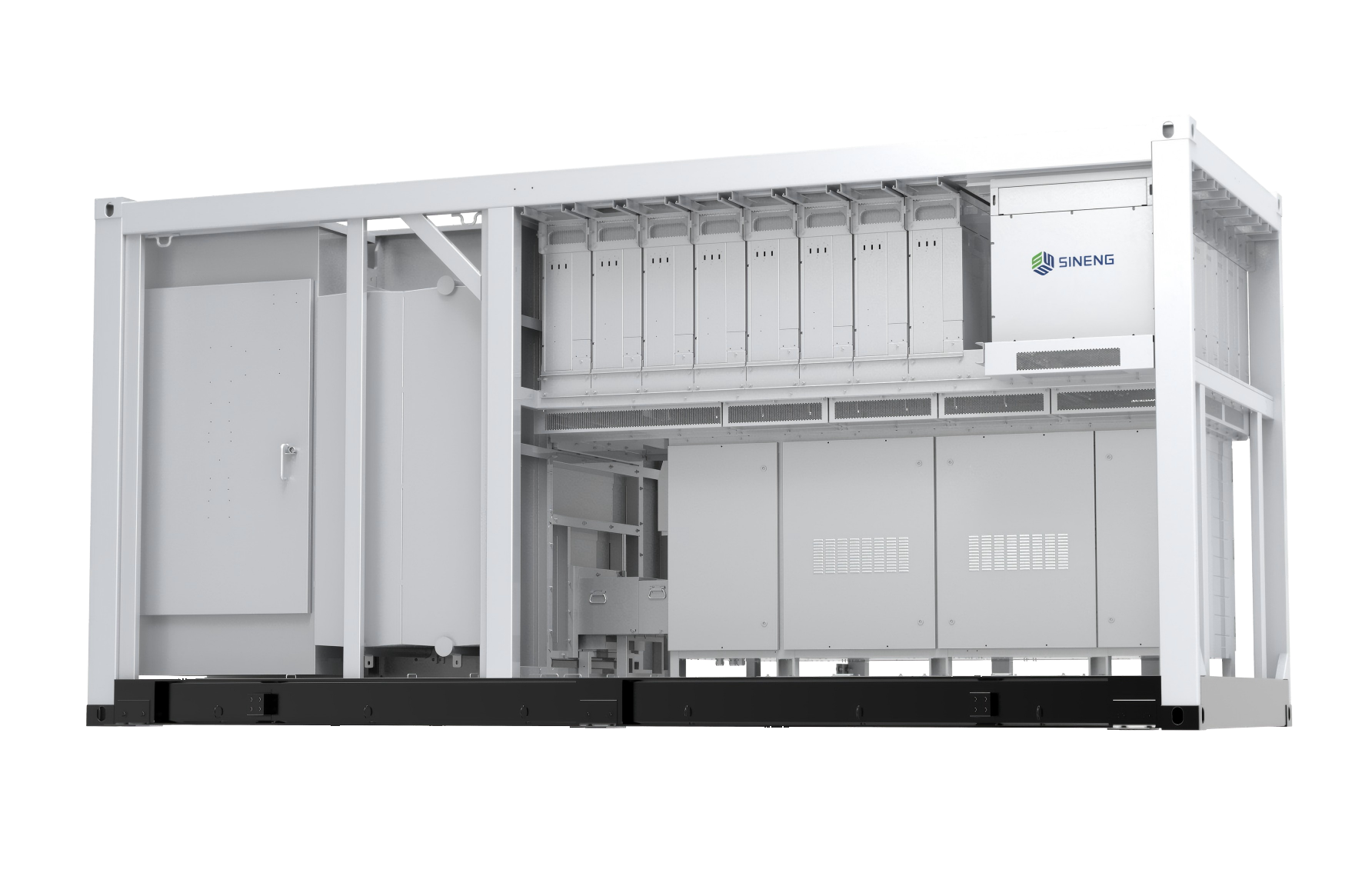

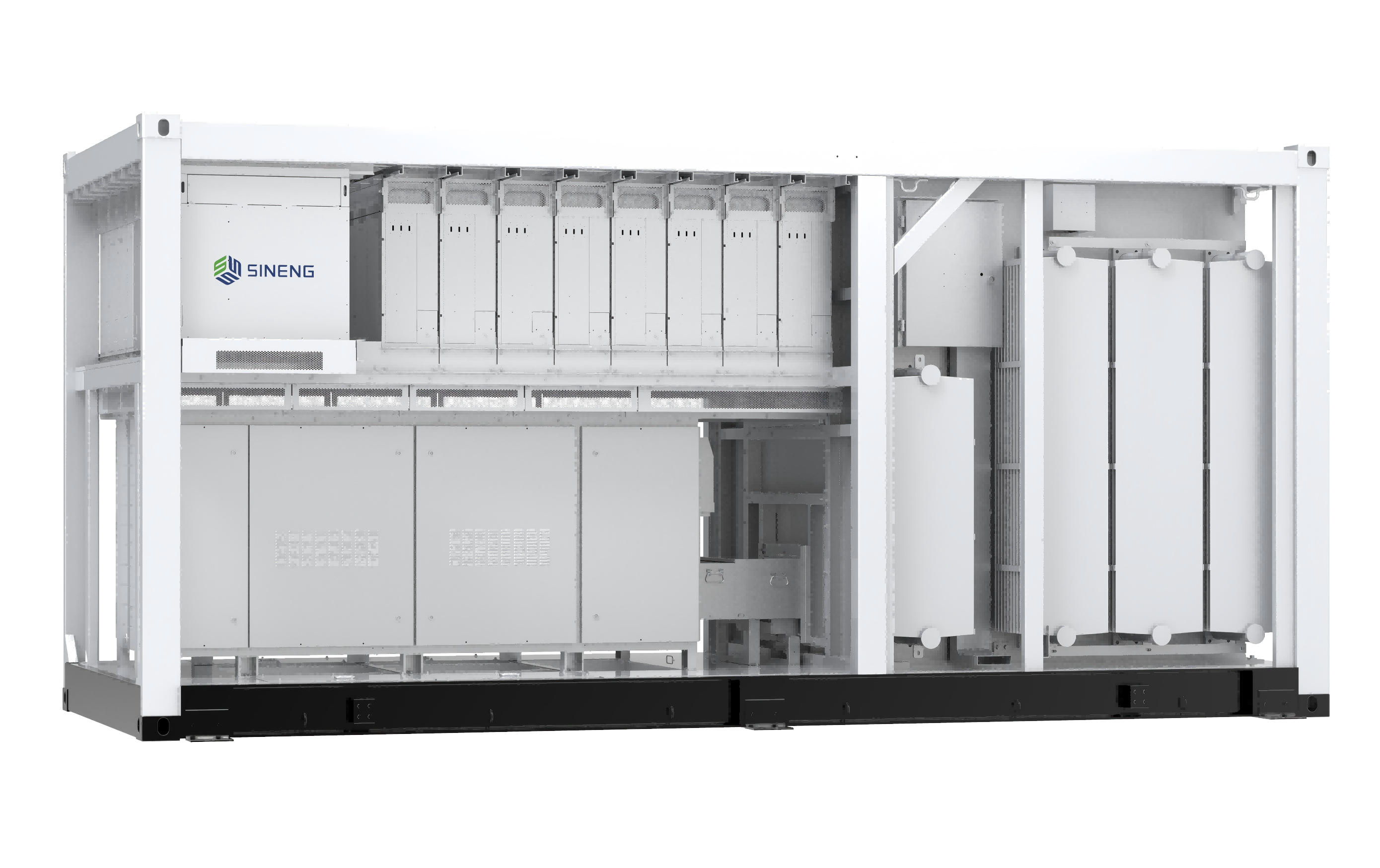

Turnkey Station With MV Transformer Integrated (String PCS, 1500V)

Product Brochure
  • EH-5160-HA-MR-US-34.5（1）.png
  • EH-5160-HA-MR-US-34.5（2）.png
  • EH-5160-HA-MR-US-34.5（3）.png
  • EH-5160-HA-MR-US-34.5（1）.png
  • EH-5160-HA-MR-US-34.5（2）.png
  • EH-5160-HA-MR-US-34.5（3）.png

  • Features

  • DC Parameters

  • AC parameters (On-Grid)

  • AC parameters (Off-Grid)

  • Transformer

  • General data

  • Features

  • DC Parameters

  • AC parameters (On-Grid)

  • AC parameters (Off-Grid)

  • Transformer

  • General data

Contact Us
Features

  • · 200 kW/215kW PCS Module with the same dimension
    · Achieve higher battery capacity utilization
    · Improve SOC imbalance between different battery racks
    · Built in Sub-Array Management Unit support IEEE 2030.5

  • · Power Module easily replacement reduce repair time
    · Allow expand new battery cluster to the old system
    · Battery system achieve more deep DOD ability
    · More easily to perform periodic battery calibration

DC Parameters
ModelEH-4800-HA-MR-US-34.5
EH-5160-HA-MR-US-34.5
Max. DC voltage1500V
Max. DC current224.5A*24
241.3A*24
Battery voltage range1000～1500V
Number of DC input24 or 12
AC parameters (On-Grid)
ModelEH-4800-HA-MR-US-34.5
EH-5160-HA-MR-US-34.5
AC output power
220kVA*24@35℃, 200kVA*24@45℃, 180kVA*24@50℃
236.5kVA*24@35℃, 215kVA*24@45℃, 193.5kVA*24@50℃
PCS Nominal AC voltage
690V, 3W+PE
PCS AC voltage range
607~759V (Adjustable)
PCS Max. AC output current
184.1A*24@35℃, 167.4A*24@45℃, 150.6A*24@50℃
197.9A*24@35℃, 179.9A*24@45℃, 161.9A*24@50℃
Nominal grid freqency
60Hz
Harmonic (THDi)
<1.5% (100% load)
Power Factor
-1～+1
AC parameters (Off-Grid)
ModelEH-4800-HA-MR-US-34.5
EH-5160-HA-MR-US-34.5
PCS Nominal AC voltage
690V, 3W+PE
PCS AC voltage range
607-759V (Adjustable)
AC voltage distortion
<1.5% (100% linear balance load)
DC voltage component
<0.5% Un (Linear balance load)
Unbalanced load capacity
100%
Nominal grid freqency
60Hz
Transformer
ModelEH-4800-HA-MR-US-34.5
EH-5160-HA-MR-US-34.5
Isolation mode
Oil-Immersed Transformer
Transformer rated power
5280kVA@35℃, 4800kVA@45℃, 4320kVA@50℃
5676kVA@35℃, 5160kVA@45℃, 4644kVA@50℃
LV/MV voltage
0.69kV/34.5kV (11.8kV~34.5kV Optional)
Transformer vector group
Dy1 or Dy11
Transformer cooling type
KNAN
Oil type
Degradable oil
General data
ModelEH-4800-HA-MR-US-34.5
EH-5160-HA-MR-US-34.5
PCS Max. efficiency
98.80%
PCS CEC efficiency
98.50%
Ingress protection rating
TYPE 3R
Operating temperature range
-40~+60℃ (>45℃ derating)
Relative humidity
0~100% (no condensing)
Max. altitude
1000m
Cooling method
Forced air cooling
Communication port
RS485/CAN/Ethernet
Dimensions (W*D*H)
7500×2000×2850mm
Weight
20000kg
21000kg
